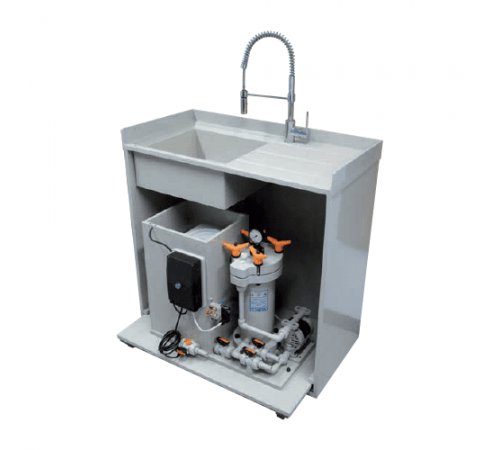

Under Sink Filtering System Plant
These filtering system are used under the sinks in the jewellery industry, to recover small parts of precious metals through filters that can have a filtering degree as small as 1 absolute micron.
ADVANTAGES
- Quick payback time
- Recovery of up to 99% of the metal in solution
- Easy to use
- Minimal maintenance
SPECIFICATIONS
- Made in PP, which guarantees high mechanical and chemical resistance to both acid and alkaline solutions
- Suitable for water at hand washing stations
TYPES OF FILTRATION:
| MODEL | Capacity (l/h) | H max | FILTERS | ||
| US-MCBPMTTPD | 1.800 | 4 | Ø 180×400 | Ø 110×400 | |
| US-MCBPMTTPD / 3C1 / 3D1 | 1.800 | 4 | Ø 180×400 | Ø 110×400 | Ø 150×35 |
| US-CM1-3 | 1.800 | 4 | Ø 180×400 | Ø 110×400 | |
| US-CM1-3 / 3C1 / 3D1 | 1.800 | 4 | Ø 180×400 | Ø 110×400 | Ø 150×35 |

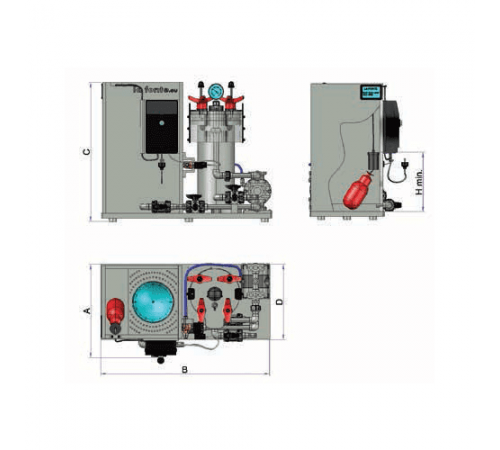

Under-Sink Filter Dimensions:
| MODEL | A | B | C | D | H min. |
| US- MCB | 410 mm | 740 mm | 605 mm | 330 mm | 280 mm |
| US-CM 1-3 | |||||
| US-MCB 3C1 |
410 mm |
1000 mm |
605 mm |
330 mm |
280 mm |
| US-MCB 3D1 | |||||
| US-CM 1-3 C1 | |||||
| US-CM 1-3 3D1 |
