Magic-F300 Multifunction Engraving Machine

Magic-F300P is a multi-functional engraver & cutter capable of engraving letters and patterns on jewelry & metal materials such as: gold, silver, copper, stainless steel or on wax, acrylic, wood. Its high Z axis & its size make it capable of large size projects. and its simple directions enable anybody to easily carve things beautifully. Because of its size, this versatile machine is designed not only for artistcs and crafts use.

USE

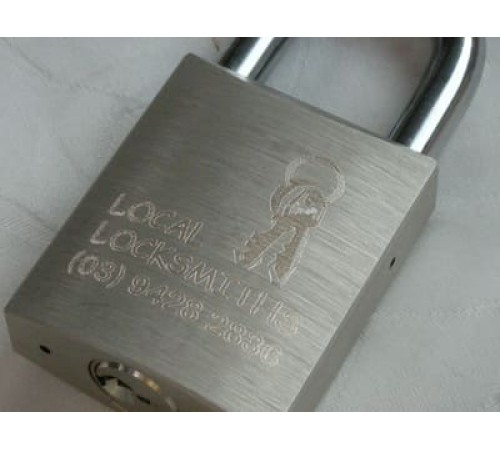

Engraving of jewelry medals, pendants, dog tags, necklaces made of various metals and other industrial materials. Cutting of nameplate necklace made of metals, woods, acrylic materials, engraving in wax.

CHARACTERISTICS

A wide flat vise up to 300mm x 200mm

Ability to engrave on thick material up to 80mm

It’s used for engraving on every type of metal such as gold, silver, copper, stainless steel etc.

It carves wax, chemical wood etc. in 3D

Depth regulating nose which engraves on uneven surface.

Cutting & engraving in symbols, Chinese character, patterns and various marks are available.

It fastens most material without changing the clamp.

A larger graphic LCD screen shows machine status and guides machine use.

Its 5 sensors measure automatically the material and tool for easy cutting & engraving.

S/W, the Magic Art, is included for easy use.

SPECIFICATION

Size	470mm(W) x 375mm(H) x 455mm(D)
Resolution	(XY) 0.005mm / (Z) 0.00125mm
Tool Diameter	4mm
Max. engraving area	300mm (X) x 200mm (Y) x 38.5mm (Z)
Weight	38.5kg
Tool type	Diamond
Power Consumption	50W
Power Supply	AC 100-240V 50/60HZ
Rotary	Outer Diameter 76mm / inner Diameter 50mm
Spindle Revolution	10,000 – 14,000RPM
Spindle Motor Power	27W
