Magic-7 Engraving Machine
MAGIC-7 is a 4-axis CNC machine with rotation axis added to 3-axis. Its sufficient working area is good for engraving on metal, acrylic, wood even with round surface and also good for cutting name plates. It’s a multi-functional machine capable of carving wax in 3D by using the added 4th axis.
USE

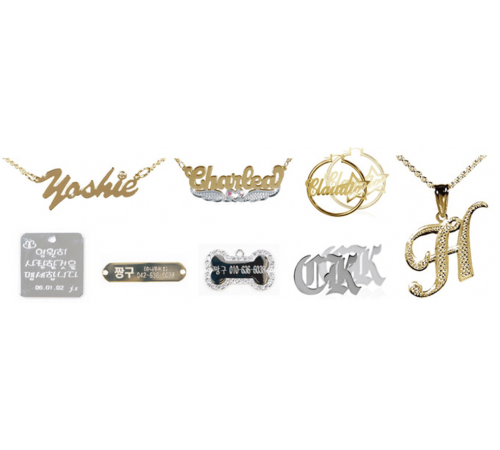

Turning of designed 2D model into real size, cutting of nameplate, of metal wood, acrylic materials, engraving in wax. Engraving in jewelry medal, pendant, in various metal materials, tool for product design support of a corporation.
Tool for jewelry craftsmanship & 3D modeling training in schools.
CHARACTERISTICS
3D rotary engraving of cylindrical form like a ring.
It can engrave in both internal and external diameter of a ring.
It engraved bangle up to 88mm in diameter.
Its compatible with 2D/3D CAD/CAM SW.
Engraving in wax, acrylic, wood, chemical wood etc.

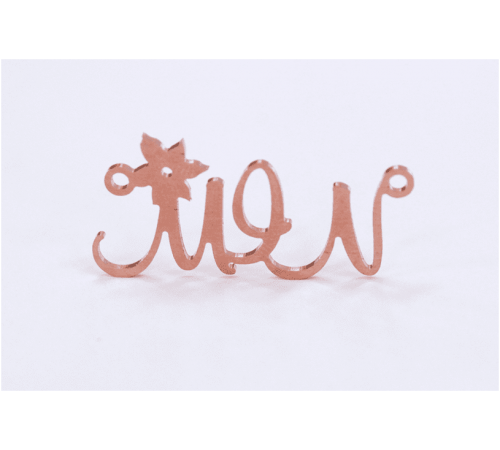

Cutting of metal material such as gold, silver, copper, brass.
Its 5 sensors measure automatically the target material and tool easy cutting and engraving.
Its laser pointer points to the area of engraving for easy and errorless engraving.
Its fastens many types of material with one clamp without changing it.
Its given with S/W for easy use.
SPECIFICATION
| Size | 385mm(W) x 315mm(H) x 340mm(D) |
| Resolution | (XY) 0.005mm / (Z) 0.00125mm / (A)0.028125degree |
| Tool Diameter | 4mm |
| Weight | 30kg |
| Tool type | Diamond |
| Spindle Revolution | 15,000 RPM |
| Power Supply | AC 100-240V 50/60HZ |
| Rotary | Max. Outer Diameter 88mm |
| Max. Engraving Area | 120mm(X) x 100mm(Y) x 30mm(Z) |
