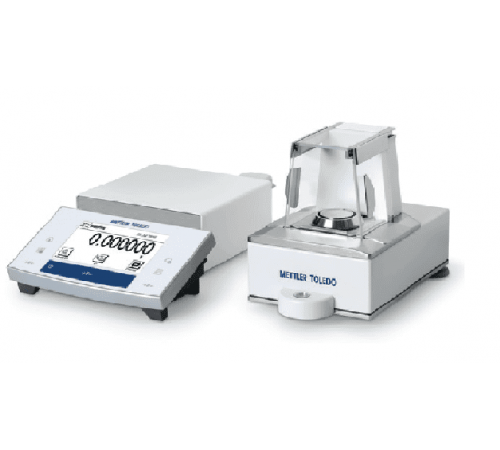

JL-1503 METTLER SCALE

Technical data	JL1503-C
Readability	0.001 ct / 0.0001 g
Max. load	1510 ct / 302 g
Taring Range	0 … 1510 ct / 0 … 302 g
Repeatability (sd)	0.001 ct / 0.0004 g
Linearity	0.002 ct / 0.0008 g
Sensitivity temperature drift (10 °C … 30 °C)	10 ppm/ °C
Typical stabilization time	4 s
Adjustment weight external	200 g (included)
Level indicator	yes
Number of leveling screws	2
Weighing pan	ø 80 mm
Usable heigh of draft shield	160 mm
External dimensions of balance (W/D/H)	194/236/254 mm
External dimensions of balance with auxiliary display (W/D/H)	194/286/254 mm
External dimensions of packaging (W/D/H)	380/225/332 mm
Net weight (with packaging)	2.6 kg (4.3 kg)
