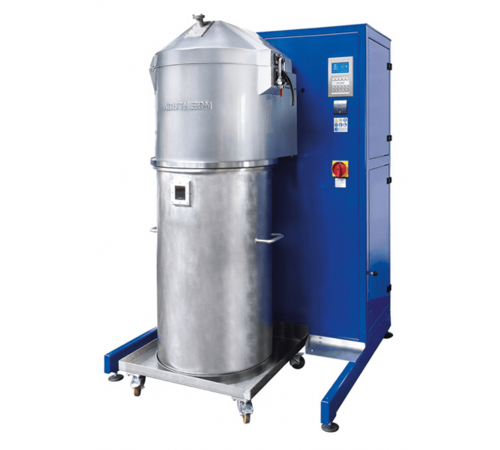

GU-12000D Induhterm

GU-12000D Induhterm

Major applications at customer:

• Granulating of metal bullions into proper grains
• Preparation of alloys out of gold and master alloy under protecting gas atmosphere or under vacuum
• Cleaning up of already cast metal under protecting gas atmosphere or under vacuum

Major advantages:

• Excellent mixing of molten metal due to low frequency generator
• Melting under protection gas atmosphere or vacuum
• Alloy mixing because of sealing rod system
• Automatic protective gas control
• Turbo – pressure device for cleaning the complete crucible
• 16 temperature programs
• Stainless steel granulation tank with pneumatic lift
• Easy emptying of the granulating tank

Specifications:

• Power max. / electrical connection ——— 40 kW / 3×400 V 63 A, 50 or 60 Hz
• Maximum temperature ———-1600° C
• Temperature measurement —-up to 1600° C – B type thermocouple
• Crucible volume ——-12000 ccm = 180 kg gold 18 ct
• Supply: inert gas argon or nitrogen —Yes – at 3.0 bar pressure
• Cooling water supply —–2.5 – 6 bar/ at least 300l/h
• Vacuum (optional) ——- 0-20 mbar absolute, at least 21 m³/h

Data:

Dimensions ——-1250 x 1000 x 1450 mm (W x D x H)

Weight ————-590 kg
