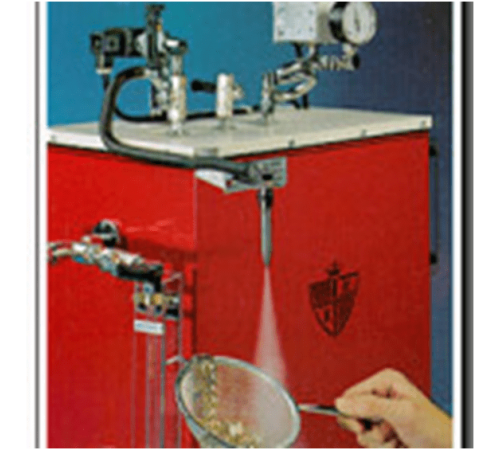

Eitan Steam Cleaner LSE-20/2/A
| APPLICATION | |
| For high volume , around the-clock production | |
| For the large jewellery manufacturer. | |
| Spot heating in industrial plants | |
| Computer rooms | |
| Laboratories | |
| Steam rooms | |
| Pilot plants and automobile after-market industries | |
|
FEATURES: |
|
| Automatic water level regiltion system | |
| Electronically controlled sensors constantly monitor the water level Maintaining the optimum operating level. |
|
| Electronic steam release valves | |
| Each valve (two standard, a third is optional is operated by foot control, freeing your hands to work. Solenoid actuated with a flow of adjustment. | |
| Pressure control | |
| Factory preset at 8 BAR (120 psi), the pressure control maintains a constant operating pressuree. | |
| Light control | |
| 1 | steam production ( i.e., heating element is working) |
| 2 | each tap ( steam release valve ) |
| 3 | the automatic pump |
| 4 | pump chamber ( i.e., low water pressure) |
| Water level sight glass | |
| Allows visual observation of the water during operation | |
| Low water preesute cut off | |
| When water flow drops below the minimum required by the pump, shuts down and the circuit goes into a standby mode. This protects the pump impeller when water pressure, the pump resumes filling. | |
| Steam pressure gauge | |
| Allows visual monitoring of the steam level. | |
| Specifications | |
| 380 volt operating voltage | |
| 3 phase ( 12 amp draw for each phase) | |
| 230 volt, single phase to jump | |
| 8.5 KW Heating Element | |
| 5 Gallon/ 20 liter capacity | |
| 0.75 HP pump ; produces 107 PSI/ 7.5 BAR unassisted | |
| Other combinations are available | |
